Wealden Tool Company Limited Adjustable Glue Joint

Online Catalogue

Spindle Tooling

Jointing

Adjustable Glue Joint

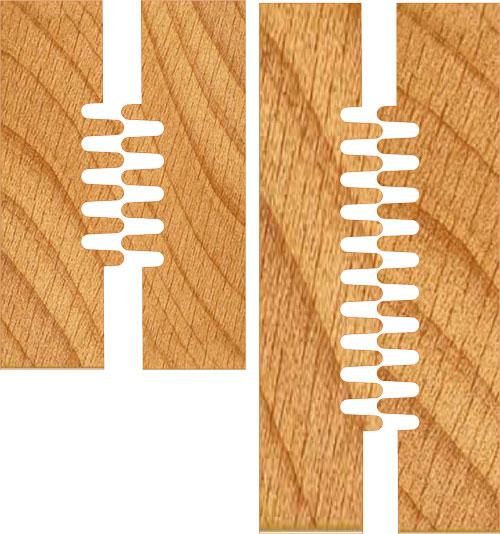

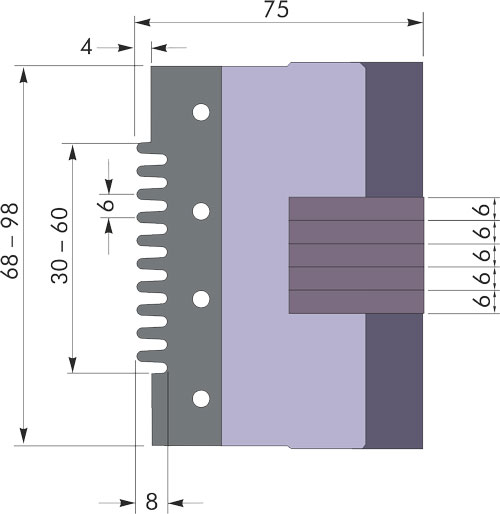

A heavy duty finger type glue jointing block in high tensile strength light alloy. The unique design allows the number of fingers to be varied from 5 to 10 giving a joint width of 30 to 60mm. This allows for the jointing of boards from 35 to 98mm in thickness.

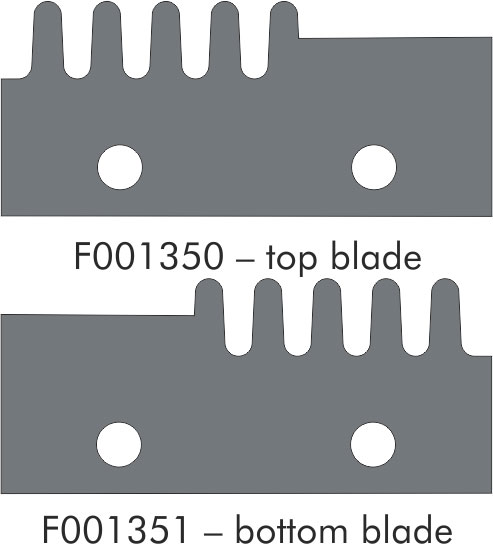

The block is supplied with 4 replaceable blades.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.

Spare parts and knives...

Part Number	SIZE			Body Material	Maximum RPM	Price inc VAT	Click to Buy
	dia.	height	bore
F272150	150mm	30-98mm	30mm	Alloy	9000	£356.60
