Hand block 40x4 & 50x4

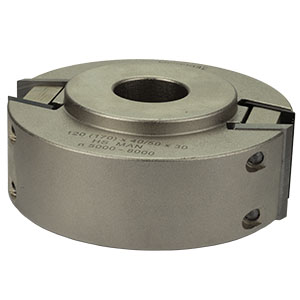

CUTTERHEADS FOR HAND FEED
The hand feed cutter heads have locators and clamping for a pair of 4mm thickness profile knives and a pair of chip limitors. The heads are supplied with a pair of rebate knives and limitors. Manufactured to EN847-1/2 - suitable for HAND FEEDING.
Cutter heads are available in a range of sizes, with the 78mm head being particularly suitable for use on small spindles and universals where the clearance on the guard would prevent a larger block being used.
The heads marked 40/50 height will accept both the 40mm knives and the 50mm x 4 mm knives and limitors.
NB A set of profiles for these blocks requires 1 pair of profile knives and 1 pair of limitors.

Part Number	SIZE			Body material	Cutting diameter with rebate knives	Maximum RPM	Price inc VAT	Click to Buy
Part Number	dia.	height	bore	Body material	Cutting diameter with rebate knives	Maximum RPM	Price inc VAT	Click to Buy
F220780	78mm	40mm	30mm	Steel	90mm	9000	£93.50
F220930	93mm	40mm	30mm	Steel	105mm	9000	£71.50
F220933	93mm	40mm	1-1/4"	Steel	105mm	9000	£71.50
F221000	100mm	40mm	30mm	Aluminium	112mm	8400	£83.90
F221003	100mm	40mm	1-1/4"	Aluminium	112mm	8400	£83.90
F221200	120mm	40mm	30mm	Steel	132mm	7900	£83.90
F221140	114mm	40/50mm	30mm	Steel	128mm	7900	£83.90
F221143	114mm	40/50mm	1-1/4"	Steel	128mm	7900	£83.90
F221480	150mm	40mm	30mm	Aluminium	164mm	6000	£85.50
