Wealden Tool Company Limited Multi cove block

Spindle Tooling

Multi cove block

Cutterhead body in hard wearing aluminium, complete with disposable tungsten carbide knives. Suitable for producing various radii coves on the edges of softwood, hardwood and man-made boards on a spindle moulder.
Either raising or lowering the cutterhead on the machine selects different radii coves.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.

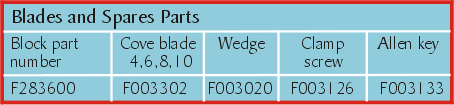

Spare parts and knives...

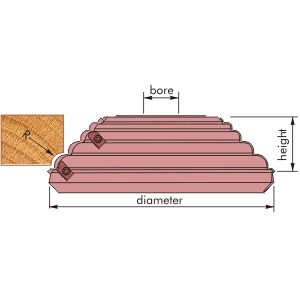

Part Number	SIZE			Body material	Cove radii	Maximum RPM	Price inc VAT	Click to Buy
	dia.	height	bore
F283600	180mm	60mm	30mm	Alloy	4-6-8-10	7500	£179.05
