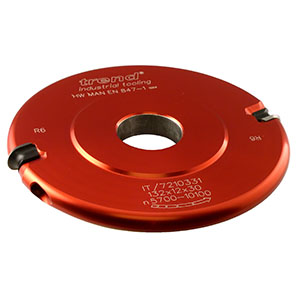

Radius Profile

A range of blocks in either steel or high tensile strength light alloy with replaceable tungsten carbide knives. The cutters are suitable for machining radius grooves, coves, drip grooves etc. in soft and hard woods as well as man made, bonded, and veneered boards.
All cutterheads can be used with a 120mm guide bearing/ring assembly for cutting uniform depth profiles on curved work.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.


Spare parts or knives should be selected from the table above and ordered from the Spares and TC knives section.
Go to spare parts and knives X
Radius Profile
Radius Profile
Radius Profile
Radius Profile
  • Radius Profile Thumbnail
  • Radius Profile Thumbnail
  • Radius Profile Thumbnail
  • Radius Profile Thumbnail
Part
Number
Radius (R)Size
Body Material
Maximum Groove Depth
Speed Range RPM
PriceDetailsBuy
Dia.HeightBore
F283030 3.0mm126mm6mm30mm
Steel
28mm
4500-10600
F283030
  • 106.10
F283040 4.0mm128mm8mm30mm
Steel
29mm
4500-10600
F283040
  • 106.10
F283050 5.0mm130mm10mm30mm
Steel
30mm
4500-10600
F283050
  • 106.10
F283060 6.0mm132mm12mm30mm
Aluminium
31mm
5700-10100
F283060
  • 132.43
F283080 8.0mm136mm16mm30mm
Aluminium
33mm
5600-8400
F283080
  • 142.96
F283100 10.0mm140mm20mm30mm
Aluminium
35mm
5400-9500
F283100
  • 153.01
O/S
F283120 12.0mm144mm24mm30mm
Aluminium
37mm
5300-9200
F283120
  • 164.81
F283150 15.0mm150mm30mm30mm
Aluminium
40mm
5000-8900
F283150
  • 176.86
F283200 20.0mm160mm40mm30mm
Aluminium
45mm
4700-8000
F283200
  • 198.83
