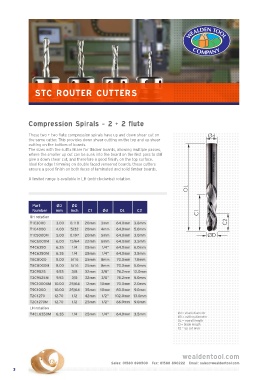

Page 6 - CNC catalogue 2021

STC ROUTER CUTTERS

Compression Spirals - 2 + 2 flute

These two + two flute compression spirals have up and down shear cut on Ød
the same cutter. This provides down shear cutting on the top and up shear
cutting on the bottom of boards.
The sizes with the suffix M are for thicker boards, allowing multiple passes,
where the smaller up cut can be sunk into the board on the first pass to still
give a down shear cut, and therefore a good finish, on the top surface.
Ideal for edge trimming on double faced veneered boards, these cutters
ensure a good finish on both faces of laminated and solid timber boards.

A limited range is available in LH (anti-clockwise) rotation.
OL

Part ØD ØD
Number mm inch C1 Ød OL C2 C1
RH rotation
C2
T1C3000 3.00 0.118 20mm 3mm 64.0mm 3.8mm
T1C4000 4.00 5/32 20mm 4mm 64.0mm 5.0mm
T1C5000M 5.00 0.197 20mm 5mm 64.0mm 3.0mm ØD
T6C6000M 6.00 15/64 22mm 6mm 64.0mm 3.5mm
T4C6350 6.35 1/4 25mm 1/4” 64.0mm 6.0mm
T4C6350M 6.35 1/4 25mm 1/4” 64.0mm 3.5mm
T8C8000 8.00 5/16 25mm 8mm 70.0mm 7.0mm
T8C8000M 8.00 5/16 25mm 8mm 70.0mm 5.0mm
T3C9525 9.53 3/8 32mm 3/8” 76.2mm 12.0mm
T3C9525M 9.53 3/8 32mm 3/8” 76.2mm 5.0mm
T9C1000XM 10.00 25/64 12mm 10mm 70.0mm 2.0mm
T9C1000 10.00 25/64 35mm 10mm 80.0mm 9.0mm
T2C1270 12.70 1/2 42mm 1/2” 102.0mm 13.0mm
T2C1270M 12.70 1/2 25mm 1/2” 66.9mm 9.0mm
LH rotation
T4CL6350M 6.35 1/4 25mm 1/4” 64.0mm 3.5mm Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = blade length
C2 = up cut area
