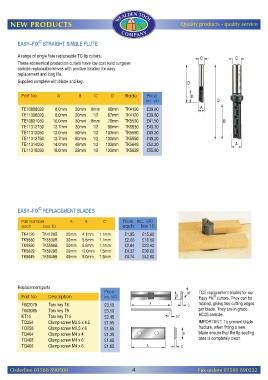

Page 4 - rout_adds_2016b

WEALDEN TOOL
NEW PRODUCTS Quality products - quality service
COM PAN Y

©
EASY–FIX STRAIGHT SINGLE FLUTE

A range of single flute replaceable TC tip cutters.
C C
These economical production cutters have low cost solid tungsten
carbide replaceable knives with positive location for easy
replacement and long life.
Supplied complete with blade and key. D

Part No. A B C D Blade Price B
inc. VAT D
TE10808020 8.0mm 20mm 8mm 60mm TK4120 £39.60 A
TE11308020 8.0mm 20mm 1/2 67mm TK4120 £39.60
TE10801030 10.0mm 30mm 8mm 70mm TK5530 £41.50 B
TE11312730 12.7mm 30mm 1/2 80mm TK5530 £43.20
TE11312050 12.0mm 50mm 1/2 103mm TK5550 £49.20
TE11312750 12.7mm 50mm 1/2 103mm TK5550 £49.20
TE11314050 14.0mm 49mm 1/2 103mm TK5649 £52.20 A
TE11318030 18.0mm 29mm 1/2 103mm TK5629 £55.80

©
EASY–FIX REPLACEMENT BLADES

Part Number A B C Price inc. VAT
each box 10 each Box 10
TK4120 TK4120B 20mm 4.1mm 1.1mm £1.95 £15.60
TK5530 TK5530B 30mm 5.5mm 1.1mm £2.06 £16.50
TK5550 TK5550B 50mm 5.5mm 1.1mm £2.64 £23.40
TK5629 TK5629B 29mm 12.0mm 1.5mm £4.32 £39.00
TK5649 TK5649B 49mm 9.0mm 1.5mm £4.74 £42.60

Replacement parts
Price 35° TCT replacement blades for our
©
Part No. Description inc. VAT B Easy-Fix cutters. They can be
F002079 Torx key T8 £3.10 A C rotated, giving two cutting edges
F002085 Torx key T9 £3.10 per blade. They are in grade
KT15 Torx key T15 £2.45 20° HC05 carbide.
TQ254 Clamp screw M2.5 x 4.5 £1.55 IMPORTANT: To prevent blade
TQ256 Clamp screw M2.5 x 6 £1.55 fracture, when fitting a new
TQ404 Clamp screw M4 x 4 £1.35 B blade ensure that the tip seating
TQ408 Clamp screw M4 x 6 £1.65 area is completely clean.
TQ406 Clamp screw M4 x 6 £1.65 A C

Orderline 01580 890500 4 Fax orders 01580 890222
