WEALDEN TOOL
NEW PRODUCTS Quality products - quality service
COM PAN Y
Ød

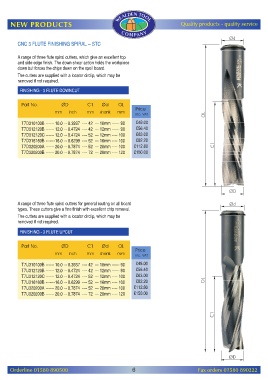

CNC 3 FLUTE FINISHING SPIRAL – STC

A range of three flute spiral cutters, which give an excellent top
and side edge finish. The down-shear action holds the workpiece
down but forces the chips down on the spoil board.
The cutters are supplied with a locator circlip, which may be
removed if not required.
FINISHING - 3 FLUTE DOWNCUT

Part No. ØD C1 Ød OL
Price
mm inch mm shank mm
inc. VAT OL
T7D310100B ------ 10.0 -- 0.3937 ---- 42 --- 10mm ------ 90 £48.00
T7D312120B ------ 12.0 -- 0.4724 ---- 42 --- 12mm ------ 90 £56.40
T7D312120C ------ 12.0 -- 0.4724 ---- 52 --- 12mm ---- 100 £63.00
T7D316160B -------16.0 -- 0.6299 ---- 52 --- 16mm ---- 100 £82.20
T7D320200A ------ 20.0 -- 0.7874 ---- 52 --- 20mm ---- 100 £112.80 C1
T7D320200B ------ 20.0 -- 0.7874 ---- 72 --- 20mm ---- 120 £150.00

ØD

A range of three flute spiral cutters for general routing on all board Ød
types. These cutters give a fine finish with excellent chip removal.
The cutters are supplied with a locator circlip, which may be
removed if not required.

FINISHING - 3 FLUTE UPCUT

Part No. ØD C1 Ød OL
Price
mm inch mm shank mm inc. VAT

T7U310100B ------ 10.0 -- 0.3937 ---- 42 --- 10mm ------ 90 £48.00
T7U312120B ------ 12.0 -- 0.4724 ---- 42 --- 12mm ------ 90 £56.40
T7U312120C ------ 12.0 -- 0.4724 ---- 52 --- 12mm ---- 100 £63.00
T7U316160B -------16.0 -- 0.6299 ---- 52 --- 16mm ---- 100 £82.20 OL
T7U320200A ------ 20.0 -- 0.7874 ---- 52 --- 20mm ---- 100 £112.80
T7U320200B ------ 20.0 -- 0.7874 ---- 72 --- 20mm ---- 120 £150.00

C1

ØD

Orderline 01580 890500 6 Fax orders 01580 890222
