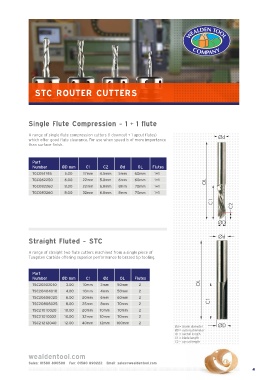

Page 7 - CNC catalogue 2021

STC ROUTER CUTTERS

Single Flute Compression - 1 + 1 flute

A range of single flute compression cutters (1 downcut + 1 upcut flutes)
which offer good flute clearance. For use when speed is of more importance
than surface finish.

Part
Number ØD mm C1 C2 Ød OL Flutes
TGC051745 5.00 17mm 4.5mm 5mm 60mm 1+1
TGC062250 6.00 22mm 5.0mm 6mm 60mm 1+1
TGC082260 8.00 22mm 6.0mm 8mm 70mm 1+1
TGC083260 8.00 32mm 6.0mm 8mm 70mm 1+1

Straight Fluted - STC

A range of straight two flute cutters machined from a single piece of
Tungsten Carbide offering superior performance to brazed tip tooling.

Part
Number ØD mm C1 Ød OL Flutes
TSC20303010 3.00 10mm 3mm 50mm 2
TSC20404010 4.00 10mm 4mm 50mm 2
TSC20606020 6.00 20mm 6mm 60mm 2
TSC20808025 8.00 25mm 8mm 70mm 2
TSC21010020 10.00 20mm 10mm 70mm 2
TSC21010032 10.00 32mm 10mm 70mm 2
TSC21212040 12.00 40mm 12mm 100mm 2
Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = blade length
C2 = up-cut length
