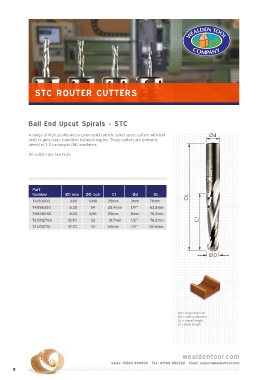

Page 8 - CNC catalogue 2021
P. 8
STC ROUTER CUTTERS
Ball End Upcut Spirals - STC
A range of high quality micro-grain solid carbide spiral upcut cutters with ball Ød
ends to give clean transition between depths. These cutters are primarily
aimed at 3-D carving in CNC machines.
All cutters are two flute.
Part
Number ØD mm ØD inch C1 Ød OL OL
T1UB3000 3.00 0.118 25mm 3mm 70mm
T4UB6350 6.35 1/4 25.4mm 1/4” 63.5mm
T8UB8000 8.00 5/16 25mm 8mm 76.2mm
C1
T2UB1270A 12.70 1/2 31.7mm 1/2” 76.2mm
T2UB1270L 12.70 1/2 54mm 1/2” 101.6mm
ØD
Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = blade length
