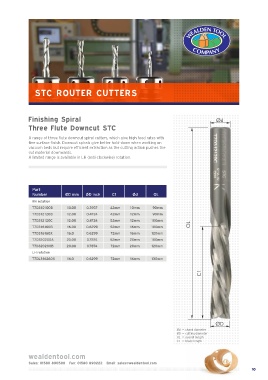

Page 13 - CNC catalogue 2021

STC ROUTER CUTTERS

Finishing Spiral
Three Flute Downcut STC

A range of three flute downcut spiral cutters, which give high feed rates with
fine surface finish. Downcut spirals give better hold-down when working on
vacuum beds but require efficient extraction as the cutting action pushes the
cut material downwards.
A limited range is available in LH (anti-clockwise) rotation.

Part
Number ØD mm ØD inch C1 Ød OL
RH rotation
T7D310100B 10.00 0.3937 42mm 10mm 90mm
T7D312120B 12.00 0.4724 42mm 12mm 90mm
T7D312120C 12.00 0.4724 52mm 12mm 100mm
T7D316160B 16.00 0.6299 52mm 16mm 100mm
T7D316160X 16.0 0.6299 72mm 16mm 120mm
T7D320200A 20.00 0.7874 52mm 20mm 100mm
T7D320200B 20.00 0.7874 72mm 20mm 120mm
LH rotation
T7DL316260X 16.0 0.6299 72mm 16mm 130mm

Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = blade length
