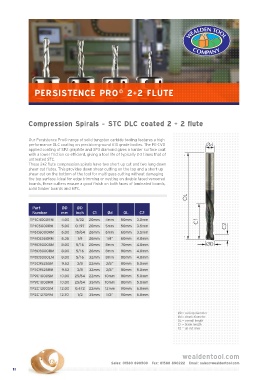

Page 14 - CNC catalogue 2021

PERSISTENCE PRO 2+2 FLUTE
©

Compression Spirals - STC DLC coated 2 + 2 flute

Our Persistence Pro© range of solid tungsten carbide tooling features a high
performance DLC coating on precision-ground K10 grade bodies. The PE-CVD Ød
applied coating of SP2 graphite and SP3 diamond gives a harder surface coat
with a lower friction co-efficient, giving a tool life of typically 2-3 times that of
untreated STC.
These 2+2 flute compression spirals have two short up cut and two long down
shear cut flutes. This provides down shear cutting on the top and a short up
shear cut on the bottom of the tool for multi-pass cutting without damaging
the top surface. Ideal for edge trimming or nesting on double faced veneered
boards, these cutters ensure a good finish on both faces of laminated boards,
solid timber boards and MFC.
OL

Part ØD ØD
Number mm inch C1 Ød OL C2
TP1C4000RM 4.00 5/32 20mm 4mm 50mm 3.0mm C1
TP1C5000RM 5.00 0.197 20mm 5mm 50mm 3.5mm C2
TP6C6000RM 6.00 15/64 26mm 6mm 60mm 3.5mm
TP4C6350RM 6.35 1/4 26mm 1/4” 60mm 4.0mm
TP8C8000SM 8.00 5/16 20mm 8mm 70mm 4.0mm ØD
TP8C8000RM 8.00 5/16 26mm 8mm 80mm 4.0mm
TP8C8000LM 8.00 5/16 32mm 8mm 80mm 4.0mm
TP3C9525SM 9.53 3/8 22mm 3/8” 80mm 5.0mm
TP3C9525RM 9.53 3/8 32mm 3/8” 80mm 5.0mm
TP9C1000SM 10.00 25/64 22mm 10mm 80mm 5.0mm
TP9C1000RM 10.00 25/64 35mm 10mm 80mm 5.0mm
TP2C1200SM 12.00 0.472 22mm 12mm 90mm 6.0mm
TP2C1270RM 12.70 1/2 35mm 1/2” 90mm 6.0mm

ØD = cutting diameter
Ød = shank diameter
OL = overall length
C1 = blade length
C2 = up cut area
