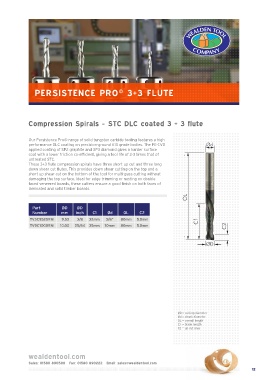

Page 15 - CNC catalogue 2021

PERSISTENCE PRO 3+3 FLUTE
©

Compression Spirals - STC DLC coated 3 + 3 flute

Our Persistence Pro© range of solid tungsten carbide tooling features a high
performance DLC coating on precision-ground K10 grade bodies. The PE-CVD Ød
applied coating of SP2 graphite and SP3 diamond gives a harder surface
coat with a lower friction co-efficient, giving a tool life of 2-3 times that of
untreated STC.
These 3+3 flute compression spirals have three short up cut and three long
down shear cut flutes. This provides down shear cutting on the top and a
short up shear cut on the bottom of the tool for multi-pass cutting without
damaging the top surface. Ideal for edge trimming or nesting on double
faced veneered boards, these cutters ensure a good finish on both faces of
laminated and solid timber boards.
OL

Part ØD ØD
Number mm inch C1 Ød OL C2
TV3C9525RM 9.53 3/8 32mm 3/8” 80mm 5.0mm C1
TV9C1000RM 10.00 25/64 35mm 10mm 80mm 5.0mm C2

ØD

ØD = cutting diameter
Ød = shank diameter
OL = overall length
C1 = blade length
C2 = up cut area
