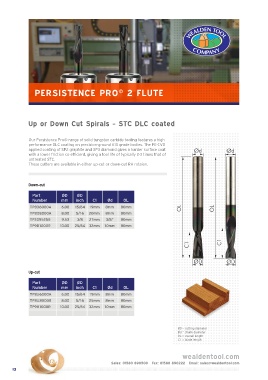

Page 16 - CNC catalogue 2021

PERSISTENCE PRO 2 FLUTE
©

Up or Down Cut Spirals - STC DLC coated

Our Persistence Pro© range of solid tungsten carbide tooling features a high
performance DLC coating on precision-ground K10 grade bodies. The PE-CVD
applied coating of SP2 graphite and SP3 diamond gives a harder surface coat
with a lower friction co-efficient, giving a tool life of typically 2-3 times that of
untreated STC.
These cutters are available in either up-cut or down-cut RH rotaion.

Down-cut

Part ØD ØD
Number mm inch C1 Ød OL
TP8D6000A 6.00 15/64 19mm 8mm 80mm
TP8D8000A 8.00 5/16 20mm 8mm 80mm
TP3D9525B 9.53 3/8 27mm 3/8” 80mm
TP9D1000R 10.00 25/64 32mm 10mm 80mm

Up-cut

Part ØD ØD
Number mm inch C1 Ød OL
TP8U6000A 6.00 15/64 19mm 8mm 80mm
TP8U8000B 8.00 5/16 25mm 8mm 80mm
TP9U1000R 10.00 25/64 32mm 10mm 80mm

ØD = cutting diameter
Ød = shank diameter
OL = overall length
C1 = blade length
