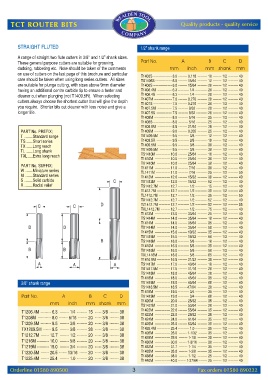

Page 5 - Rout2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

STRAIGHT FLUTED 1/2” shank range

A range of straight two flute cutters in 3/8’’ and 1/2” shank sizes.
These general purpose cutters are suitable for grooving, Part No. A B C D
dadoing, rabbeting etc. Note should be taken of the comments mm inch mm shank mm
on use of cutters on the last page of this brochure and particular
T1403S ----------------- 3.0 -------- 0.118 --------- 10 -------- 1/2 --------- 40
care should be taken when using long series cutters. All sizes TS1406S --------------- 6.0 -------- 15/64 --------- 12 -------- 1/2 --------- 40
are suitable for plunge cutting, with sizes above 9mm diameter T1406S ----------------- 6.0 -------- 15/64 --------- 20 -------- 1/2 --------- 40
having an additional centre carbide tip to ensure a faster and T1406.4M ------------- 6.3 ---------- 1/4 ----------- 20 -------- 1/2 --------- 40
cleaner cut when plunging (not T1409.5R). When selecting T1406.4S -------------- 6.3 ---------- 1/4 ----------- 20 -------- 1/2 --------- 40
cutters always choose the shortest cutter that will give the depth T1407M ---------------- 7.0 -------- 0.276 --------- 20 -------- 1/2 --------- 40
T1407S ----------------- 7.0 -------- 0.276 --------- 20 -------- 1/2 --------- 40
you require. Shorter bits cut cleaner with less noise and give a T1407.5M ------------- 7.5 --------- 9/32 ---------- 20 -------- 1/2 --------- 40
longer life. T1407.5S -------------- 7.5 --------- 9/32 ---------- 20 -------- 1/2 --------- 40
T1408M ---------------- 8.0 --------- 5/16 ---------- 25 -------- 1/2 --------- 40
T1408S ----------------- 8.0 --------- 5/16 ---------- 25 -------- 1/2 --------- 40
T1408.5M ------------- 8.5 -------- 21/64 --------- 25 -------- 1/2 --------- 40
PART No. PREFIX: T1409M ---------------- 9.0 -------- 0.355 --------- 25 -------- 1/2 --------- 40
T.........Standard range TS1409.5M ----------- 9.5 ---------- 3/8 ----------- 12 -------- 1/2 --------- 40
TS.......Short series T1409.5R -------------- 9.5 ---------- 3/8 ----------- 19 -------- 1/2 --------- 40
TX.......Long reach T1409.5M ------------- 9.5 ---------- 3/8 ----------- 30 -------- 1/2 --------- 40
TL.......Long shank TX1409.5M ----------- 9.5 ---------- 3/8 ----------- 38 -------- 1/2 --------- 40
TXL.....Extra long reach TS1410M ------------- 10.0 -------- 25/64 --------- 16 -------- 1/2 --------- 40
T1410M -------------- 10.0 -------- 25/64 --------- 30 -------- 1/2 --------- 40
TX1410M ------------ 10.0 -------- 25/64 --------- 38 -------- 1/2 --------- 40
PART No. SUFFIX: T1411M -------------- 11.0 --------- 7/16 ---------- 30 -------- 1/2 --------- 40
W........Miniature series TL1411M ------------- 11.0 --------- 7/16 ---------- 25 -------- 1/2 --------- 50
M ........Standard series T1412M -------------- 12.0 -------- 15/32 --------- 30 -------- 1/2 --------- 40
S.........Solid carbide TX1412M ------------ 12.0 -------- 15/32 --------- 52 -------- 1/2 --------- 40
R.........Radial relief TS1412.7M ---------- 12.7 ---------- 1/2 ----------- 15 -------- 1/2 --------- 40
T1412.7M ------------ 12.7 ---------- 1/2 ----------- 35 -------- 1/2 --------- 40
TL1412.7M ---------- 12.7 ---------- 1/2 ----------- 25 -------- 1/2 --------- 50
TX1412.7M ---------- 12.7 ---------- 1/2 ----------- 52 -------- 1/2 --------- 40
TZ1412.7M ---------- 12.7 ---------- 1/2 ----------- 52 -------- 1/2 --------- 55
TXL1412.7M -------- 12.7 ---------- 1/2 ----------- 75 -------- 1/2 --------- 40
T1413M -------------- 13.0 -------- 33/64 --------- 25 -------- 1/2 --------- 40
TS1414M ------------ 14.0 -------- 35/64 --------- 18 -------- 1/2 --------- 40
T1414M -------------- 14.0 -------- 35/64 --------- 35 -------- 1/2 --------- 40
TX1414M ------------ 14.0 -------- 35/64 --------- 50 -------- 1/2 --------- 40
T1415M -------------- 15.0 -------- 19/32 --------- 35 -------- 1/2 --------- 40
TX1415M ------------ 15.0 -------- 19/32 --------- 50 -------- 1/2 --------- 40
TS1416M ------------ 16.0 ---------- 5/8 ----------- 18 -------- 1/2 --------- 40
T1416M -------------- 16.0 ---------- 5/8 ----------- 35 -------- 1/2 --------- 40
TX1416M ------------ 16.0 ---------- 5/8 ----------- 50 -------- 1/2 --------- 40
TXL1416M ----------- 16.0 ---------- 5/8 ----------- 65 -------- 1/2 --------- 40
T1416.5M ------------ 16.5 -------- 21/32 --------- 35 -------- 1/2 --------- 40
TS1417M ------------ 17.0 -------- 43/64 --------- 18 -------- 1/2 --------- 40
TS1417.5M ---------- 17.5 -------- 11/16 --------- 20 -------- 1/2 --------- 40
TS1418M ------------ 18.0 -------- 45/64 --------- 20 -------- 1/2 --------- 40
T1418M -------------- 18.0 -------- 45/64 --------- 35 -------- 1/2 --------- 40
3/8” shank range TX1418M ------------ 18.0 -------- 45/64 --------- 60 -------- 1/2 --------- 40
TS1418.5M ---------- 18.5 --------47/64 --------- 20 -------- 1/2 --------- 40
T1419M -------------- 19.0 ---------- 3/4 ----------- 35 -------- 1/2 --------- 40
Part No. A B C D TX1419M ------------ 19.0 ---------- 3/4 ----------- 60 -------- 1/2 --------- 40
T1420M -------------- 20.0 -------- 25/32 --------- 35 -------- 1/2 --------- 40
mm inch mm shank mm
TS1421M ------------ 21.0 -------- 53/64 --------- 20 -------- 1/2 --------- 40
T1422M -------------- 22.0 -------- 55/64 --------- 35 -------- 1/2 --------- 40
T1206.4M -------- 6.3 ------- 1/4 -------- 15 ----- 3/8 ------- 38
T1423M -------------- 23.0 -------- 29/32 --------- 35 -------- 1/2 --------- 40
T1208M ---------- 8.0 ------- 5/16 ------- 20 ----- 3/8 ------- 38 T1424M -------------- 24.0 -------- 61/64 --------- 35 -------- 1/2 --------- 40
T1209.5M -------- 9.5 ------- 3/8 -------- 20 ----- 3/8 ------- 38 T1425M -------------- 25.0 -------- 63/64 --------- 35 -------- 1/2 --------- 40
TX1209.5M ------ 9.5 ------- 3/8 -------- 38 ----- 3/8 ------- 38 T1425.4M ------------ 25.4 ---------- 1.0 ----------- 35 -------- 1/2 --------- 40
T1426M -------------- 26.0 ------- 1-1/32 -------- 35 -------- 1/2 --------- 40
T1212.7M ------ 12.7 ------- 1/2 -------- 20 ----- 3/8 ------- 38
T1428M -------------- 28.6 -------- 1-1/8 --------- 35 -------- 1/2 --------- 40
T1216M --------- 16.0 ------- 5/8 -------- 20 ----- 3/8 ------- 38 T1430M -------------- 30.0 ------- 1-3/16 -------- 30 -------- 1/2 --------- 40
T1219M --------- 19.0 ------- 3/4 -------- 20 ----- 3/8 ------- 38 T1432M -------------- 31.7 -------- 1-1/4 --------- 35 -------- 1/2 --------- 40
T1220.5M ------ 20.5 ------ 13/16 ------ 20 ----- 3/8 ------- 38 T1435M -------------- 35.0 -------- 1-3/8 --------- 35 -------- 1/2 --------- 40
T1438M -------------- 38.0 -------- 1-1/2 --------- 25 -------- 1/2 --------- 40
T1225.4M ------ 25.4 ------- 1.0 -------- 20 ----- 3/8 ------- 38
T1440M -------------- 40.0 ------- 1-37/64 -------- 25 -------- 1/2 --------- 40
Orderline 01580 890500 3 Fax orders 01580 890222
