Wealden Tool Company Limited Beading

Spindle Tooling

Beading

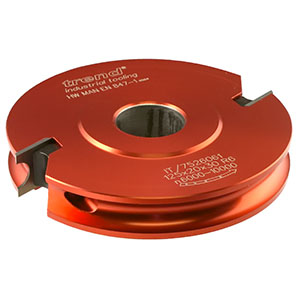

A range of blocks in high tensile strength light alloy with replaceable tungsten carbide knives. The cutters are suitable for producing beads, bullnose moulds etc. in soft and hard woods as well as man made, bonded, and veneered boards.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.
Spare parts and knives...

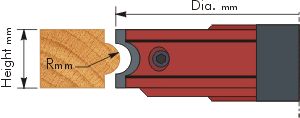

Part Number	Radius (R)	SIZE			Speed range RPM	Price inc VAT	Click to Buy
Part Number	Radius (R)	dia.	height	bore	Speed range RPM	Price inc VAT	Click to Buy
F282030	3.0mm	125mm	15mm	30mm	6000-10000	£128.40
F282040	4.0mm	125mm	15mm	30mm	6000-10000	£128.40
F282050	5.0mm	125mm	20mm	30mm	6000-10000	£138.00
F282060	6.0mm	125mm	20mm	30mm	6000-10000	£138.00
F282080	8.0mm	125mm	30mm	30mm	6000-10000	£158.40
F282100	10.0mm	125mm	30mm	30mm	6000-10000	£158.40
F282120	12.0mm	125mm	30mm	30mm	6000-10000	£158.40
F282150	15.0mm	125mm	40mm	30mm	6000-10000	£174.00
F282200	20.0mm	135mm	50mm	30mm	5500-9000	£184.80
