Tongue & Groove Tooling Set

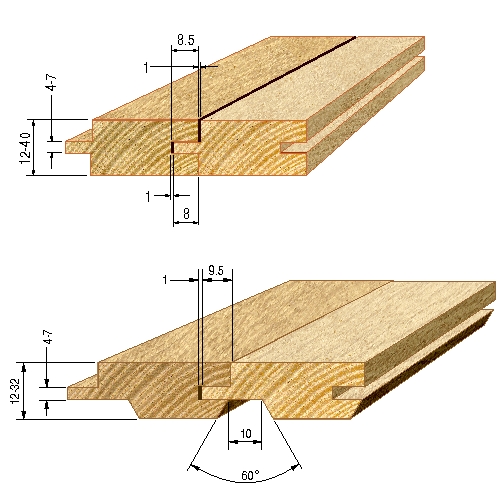

This 4 block set of Swop-Tip replaceable tip tooling enables the production of tongue & groove; tongue & groove & V; tongue groove & V with shadow gap boards. It is shim adjustable to produce various tongue widths and board thicknesses in the range as shown.
Additionally, to increase the flexibility of the system, alternative blocks can be purchased to produce double-sided tongue & groove and tongue, groove & round profile boards.

Watch a video on using this cutter set here.

Click here to download the set-up instructions PDF for this product.

Replacement knives are listed below. Contact us for all other spare parts.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.

Tongue & Groove Tooling Set
Tongue & Groove Tooling Set
Tongue & Groove Tooling Set
Tongue & Groove Tooling Set
  • Tongue & Groove Tooling Set Thumbnail
  • Tongue & Groove Tooling Set Thumbnail
  • Tongue & Groove Tooling Set Thumbnail
  • Tongue & Groove Tooling Set Thumbnail
Part
Number		Size
Body Material
RPM range
PriceDetailsBuy
Dia.HeightBore
F264140 140mm12-40mm30mm
Steel/Alloy
5500-9400
 F264140
  • £576.72
F264143 140mm12-40mm1-1/4"
Steel/Alloy
5500-9400
 F264143
  • £594.76
Optional items Optional items
F264140F Top chamfer block - 30mm bore F264140F
  • £197.52
F264143F Top chamfer block - 1-1/4" bore F264143F
  • £197.52
F264140E Radius block - 30mm bore F264140E
  • £197.52
F264143E Radius block - 1-1/4" bore F264143E
  • £197.52
Replacement knives Replacement knives
F001014 TC scoring knife 14 x 14 x 2 for all blocks F001014
  • £1.92
F000455 TC hook knife 18 x 18 x 1.95 F000455
  • £5.04
F000442 TC knife 20 x 12 x 1.5 - 4 cutting edges F000442
  • £2.52
F000443 TC knife 30 degree chamfer - bottom block F000443
  • £25.56
F000444 TC knife 45 degree chamfer - bottom block F000444
  • £25.56
F000447 TC knife 45 degree chamfer - optional top block F000447
  • £2.04
F000446 TC knife R5 optional radius block F000446
  • £2.04
