Nesting Upcut

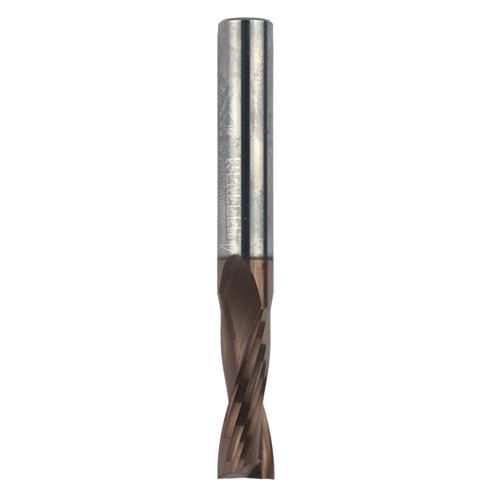

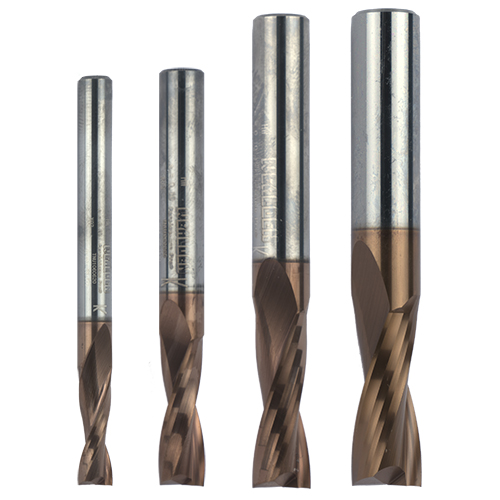

These two flute Upcut spirals are a cost effective cutter for nesting operations on CNC routing machines.

The cutting edges have a high-end Tisaflex coating (ALSiXN/TiSiXN) which offers high wear resistance at high temperatures giving extended tool life, useful for MFC and FRMDF when PCD cutters aren't suitable.

Nesting Upcut
Nesting Upcut
Nesting Upcut
  • Nesting Upcut Thumbnail
  • Nesting Upcut Thumbnail
  • Nesting Upcut Thumbnail
Part
Number

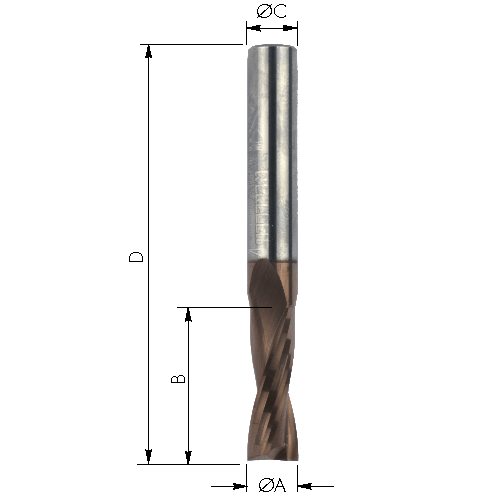

A (mm)BCDPriceDetailsBuy
TNU1060620 6.0mm20mm6mm70mm TNU1060620
  • £35.76
TNU1080825 8.0mm25mm8mm70mm TNU1080825
  • £40.92
TNU1101025 10.0mm25mm10mm80mm TNU1101025
  • £61.68
TNU1121230 12.0mm30mm12mm80mm TNU1121230
  • £75.60
