Tip Change Profiling System - Large

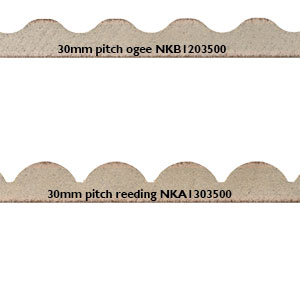

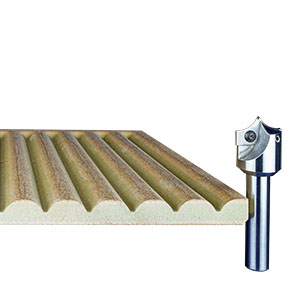

The multifit cutter system features a toolholder which accepts a range of TC cutter knives for producing larger Ovolo or Reeds in a production environment on CNC machines. The easily replaced knives are available in a range of profiles. Spindle speed 18,000rpm, 3 metres per minute feed rate, single pass.
Knives need to be ordered separately from the holder.

Tip Change Profiling System - Large
Tip Change Profiling System - Large
Tip Change Profiling System - Large
Tip Change Profiling System - Large
  • Tip Change Profiling System - Large Thumbnail
  • Tip Change Profiling System - Large Thumbnail
  • Tip Change Profiling System - Large Thumbnail
  • Tip Change Profiling System - Large Thumbnail
Part
Number
Description
Quantity
PriceDetailsBuy

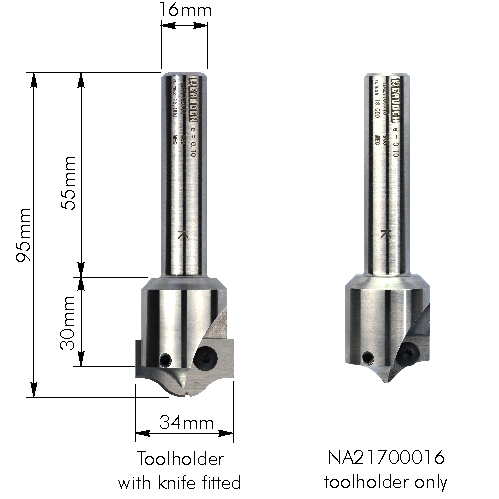

NA21700016 Cutter holder only - 16mm dia. x 55mm shank
1
NA21700016
  • £105.48

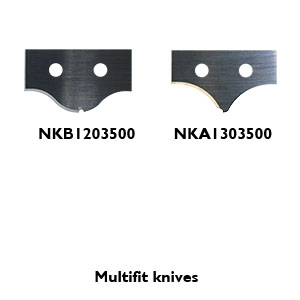

NKB1203500 30mm pitch Ogee knife
1
NKB1203500
  • £37.80
NKA1303500 30mm pitch Reeding knife
1
NKA1303500
  • £37.80
