Bevel 3 Flute

Bevel assemblies may be either 22° or 45° angle of cut and left hand or right hand rotation. The standard assembly is right hand (RH) with the bearing below the cutter for top cutting. LH assemblies have the bearing above the cutter and are suitable for undercutting.

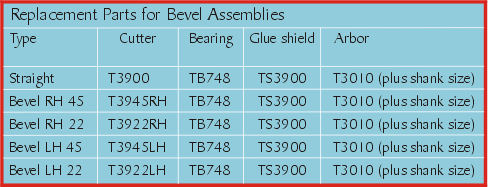

Spare parts should be selected from this table and then ordered from the Bearings and Spares section of the catalogue.
Go to Bearings & Spares pageX
Bevel 3 Flute
Bevel 3 Flute
Bevel 3 Flute
Bevel 3 Flute
  • Bevel 3 Flute ThumbnailBevel 3 Flute Thumbnail
  • Bevel 3 Flute Thumbnail
  • Bevel 3 Flute Thumbnail
  • Bevel 3 Flute Thumbnail
Part
Number
ABCDEPriceDetailsBuy
T3946RH 19mm8.0mm1/4"29mm45° T3946RH
  • £30.96
T3946RH-8 19mm8.0mm8mm35mm45° T3946RH-8
  • £30.96
T3946RH-3/8 19mm8.0mm3/8"33mm45° T3946RH-3/8
  • £30.96
T3946RH-1/2 19mm8.0mm1.237mm45° T3946RH-1/2
  • £30.96
T3926RH 19mm9.5mm1/4"29mm22° T3926RH
  • £30.96
T3926RH-8 19mm9.5mm8mm35mm22° T3926RH-8
  • £30.96
T3926RH-3/8 19mm9.5mm3/8"32mm22° T3926RH-3/8
  • £30.96
T3926RH-1/2 19mm9.5mm1/2"37mm22° T3926RH-1/2
  • £30.96
T3946LH 19mm0.8mm1/4"26mm45° T3946LH
  • £30.96
T3946LH-8 19mm8.0mm8mm35mm45° T3946LH-8
  • £30.96
T3946LH-3/8 19mm8.0mm3/8"32mm45° T3946LH-3/8
  • £30.96
T3946LH-1/2 19mm8.0mm1/2"37mm45° T3946LH-1/2
  • £30.96
T3926LH 19mm9.5mm1/4"29mm22° T3926LH
  • £30.96
T3926LH-8 19mm9.5mm8mm35mm22° T3926LH-8
  • £30.96
T3926LH-3/8 19mm9.5mm3/8"32mm22° T3926LH-3/8
  • £30.96
T3926LH-1/2 19mm9.5mm1/2"37mm22° T3926LH-1/2
  • £30.96
