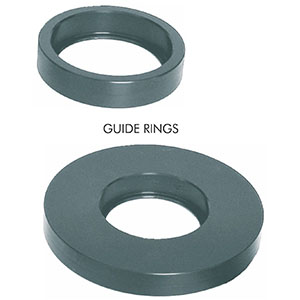

Guide Rings

A range of guide rings in hard wearing aluminium alloy which are used in conjunction with a ball bearing and security ring to produce ball bearing guide assemblies with diameters from 75-150 mm. The bearing and security ring are available in 30mm or 1-1/4 inch bore.
A complete bearing assembly is made up of a guide ring (F310075 to F310150), ball bearing (F310062 or F310063) and steel security ring (F310030 or F310033), to prevent the guide ring from rising.

Guide Rings
Guide Rings
Guide Rings
Guide Rings
  • Guide Rings Thumbnail
  • Guide Rings Thumbnail
  • Guide Rings Thumbnail
  • Guide Rings Thumbnail
Part
Number
Size
Description
PriceDetailsBuy
Dia.ThicknessBore
F310075 75mm16mm62mm
Guide ring
F310075
  • 12.70
F310080 80mm16mm62mm
Guide ring
F310080
  • 14.14
F310085 85mm16mm62mm
Guide ring
F310085
  • 14.82
F310090 90mm16mm62mm
Guide ring
F310090
  • 15.25
F310095 95mm16mm62mm
Guide ring
F310095
  • 16.12
F310098 98mm16mm62mm
Guide ring
F310098
  • 18.88
F310100 100mm16mm62mm
Guide ring
F310100
  • 16.98
F310105 105mm16mm62mm
Guide ring
F310105
  • 17.80
F310110 110mm16mm62mm
Guide ring
F310110
  • 18.67
F310115 115mm16mm62mm
Guide ring
F310115
  • 20.34
F310120 120mm16mm62mm
Guide ring
F310120
  • 22.07
F310125 125mm16mm62mm
Guide ring
F310125
  • 22.88
F310130 130mm16mm62mm
Guide ring
F310130
  • 25.00
F310135 135mm16mm62mm
Guide ring
F310135
  • 27.14
F310140 140mm16mm62mm
Guide ring
F310140
  • 29.95
F310145 145mm16mm62mm
Guide ring
F310145
  • 33.90
F310150 150mm16mm62mm
Guide ring
F310150
  • 37.32
F310062 62mm16mm30mm
Ball bearing
F310062
  • 6.44
F310063 62mm16mm1-1/4"
Ball bearing
F310063
  • 30.00
F310030 78mm5.5mm30mm
Security ring
F310030
  • 11.04
F310033 78mm5.5mm1-1/4"
Security ring
F310033
  • 15.61
