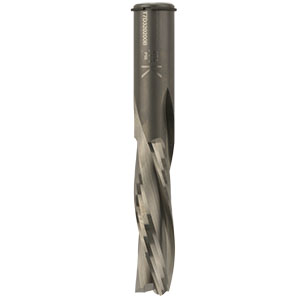

Three Flute Down-Cut

A range of three flute spiral cutters, which give an excellent top and side edge finish. The down-shear action holds the workpiece down but forces the chips down on the spoil board.
A limited range is available in LH (anti-clockwise) rotation.
The cutters are supplied with a locator circlip, which may be removed if not required.

Three Flute Down-Cut
Three Flute Down-Cut
Three Flute Down-Cut
  • Three Flute Down-Cut Thumbnail
  • Three Flute Down-Cut Thumbnail
  • Three Flute Down-Cut Thumbnail
Part
Number

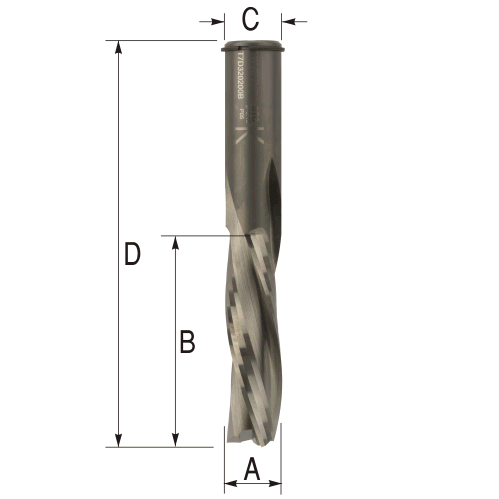

A (mm)A (inch)BCDPriceDetailsBuy
RH rotation RH rotation
T7D310100B 10.00.393742mm10mm90mm T7D310100B
  • £54.24
T7D312120B 12.00.472442mm12mm90mm T7D312120B
  • £63.48
T7D312120C 12.00.472452mm12mm100mm T7D312120C
  • £70.44
T7D316160B 16.00.629952mm16mm100mm T7D316160B
  • £93.24
no stock
T7D316160X 16.00.629972mm16mm130mm T7D316160X
  • £145.68
T7D320200A 20.00.787452mm20mm100mm T7D320200A
  • £132.60
T7D320200B 20.00.787472mm20mm120mm T7D320200B
  • £177.84
T7D320200X 20.00.7874102mm20mm150mm T7D320200X
  • £191.52

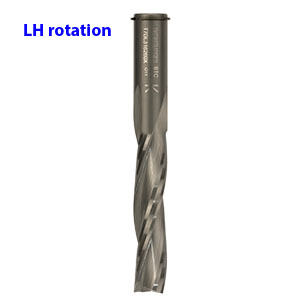

LH rotation LH rotation
T7DL316260X 16.00.629972mm20mm130mm T7DL316260X
  • £130.08
