Chamfer/Bevel

This range of two flute cutters allows the bevelling of timber up to 35mm thickness. The cutters may be used to bevel timber for the production of multi sided boxes etc. Click More info... for information on cutter angle and the number of sides to a box. A guide bearing kit TB1940 is available to convert these cutters for bearing guided operation, tick the add bearing kit box, or order separately from the Bearing kit section.
N.B. The T1949½ is a large cutter and is intended for use in a stationary machine and at a MAXIMUM SPEED OF 16,000 RPM.


MULTI SIDED BOXES

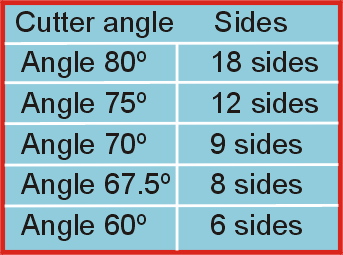

The list shows the cutter angle required to produce a box with a specified number of sides.X
Chamfer/Bevel
Chamfer/Bevel
Chamfer/Bevel
Chamfer/Bevel
  • Chamfer/Bevel Thumbnail
  • Chamfer/Bevel Thumbnail
  • Chamfer/Bevel Thumbnail
  • Chamfer/Bevel Thumbnail

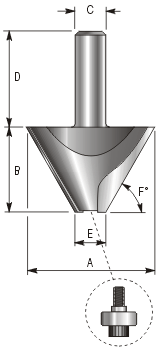

Part
Number
ABCDEFPriceDetailsBuy
T1957-1/2 28.7mm50mm1/2"40mm13mm81° T1957-1/2
  • £47.04
T1940-8 25.1mm35mm8mm35mm13mm80° T1940-8
  • £32.40
T1941-1/2 25.1mm35mm1/2"38mm13mm80° T1941-1/2
  • £34.08
T1942-8 31.5mm35mm8mm35mm13mm75° T1942-8
  • £37.92
T1943-1/2 31.5mm35mm1/2"38mm13mm75° T1943-1/2
  • £44.04
T1944-8 38.2mm35mm8mm32mm13mm70° T1944-8
  • £38.64
T1945-1/2 38.2mm35mm1/2"38mm13mm70° T1945-1/2
  • £38.64
T1947-1/2 41.7mm35mm1/2"38mm13mm67.5° T1947-1/2
  • £41.04
T1949-1/2 53.2mm35mm1/2"38mm13mm60° T1949-1/2
  • £55.56
