Hinge Boring

A range of boring cutters to suit the popular sizes of concealed cabinet hinges and KD fittings. All sizes have a centre point and two scoring cutters and produce a clean flat bottomed hole in all timbers and particle boards. Cutters up to 26mm diameter may be used at speeds up to 25,000 rpm, however the larger cutters should ideally be used at speeds below 10,000 rpm in a pillar drill or similar, although a variable speed routing machine is also suitable. In addition to hinge sinking, these cutters are also ideal for any operation requiring a clean bored hole with a flat bottom.
The TD1835 has a 10mm shank, with flat and height adjustment screw, for use in multi-boring machines etc.

Hinge Boring
Hinge Boring
Hinge Boring
Hinge Boring
  • Hinge Boring Thumbnail
  • Hinge Boring Thumbnail
  • Hinge Boring Thumbnail
  • Hinge Boring Thumbnail
Part
Number
ABCDPriceDetailsBuy

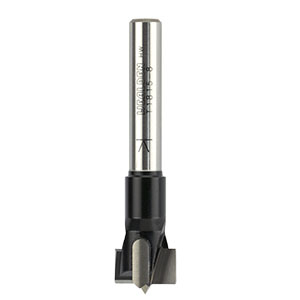

T1815-8 15.0mm26mm8mm36mm T1815-8
  • 17.23
T1820-8 20.0mm26mm8mm36mm T1820-8
  • 20.60
T1820 20.0mm26mm3/8"36mm T1820
  • 20.60
T1822 22.0mm26mm3/8"36mm T1822
  • 21.13
T1825 25.0mm26mm3/8"36mm T1825
  • 22.55
T1826 26.0mm26mm3/8"36mm T1826
  • 22.55
T1830 30.0mm28mm3/8"36mm T1830
  • 26.50
T1835-8 35.0mm28mm8mm36mm T1835-8
  • 27.80

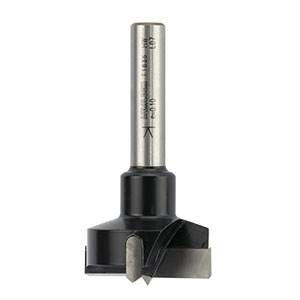

T1835 35.0mm28mm3/8"36mm T1835
  • 27.80
TD1835 35.0mm30mm10mm26mm TD1835
  • 23.65
T1835A 35.0mm28mm1/2"36mm T1835A
  • 27.80
O/S
T1840 40.0mm28mm1/2"36mm T1840
  • 32.05
T1850 50.0mm28mm1/2"36mm T1850
  • 39.60
