Woodworking tooling for the professional

Disposable Tip Groover

A range of replaceable tip cutters with hard wearing steel bodies. The groovers are fitted with 4 replaceable TC tips and 4 replaceable scribes. The cutter is suitable for production grooving in soft and hard woods as well as man-made and bonded boards.
The replaceable tips and scribes ensure constant cutting performance and a quality finish on all solid timbers and man-made boards.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.


Spare parts or knives should be selected from the table above and ordered from the Spares and TC knives section.
Go to spare parts and knivesX
Disposable Tip Groover
Disposable Tip Groover
Disposable Tip Groover
Disposable Tip Groover
  • Disposable Tip Groover Thumbnail
  • Disposable Tip Groover Thumbnail
  • Disposable Tip Groover Thumbnail
  • Disposable Tip Groover Thumbnail
Part
Number
Groove Width (A)Size
Maximum Groove Depth (B)
Speed Range (RPM)
PriceDetailsBuy
Dia.HeightBore
F422040 4.0mm150mm4mm30mm
45mm
5200-8900
F422040
  • 151.30

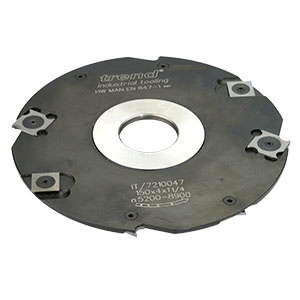

F422043 4.0mm150mm4mm1-1/4"
45mm
5200-8900
F422043
  • 151.30
F422050 5.0mm150mm5mm30mm
45mm
5200-8900
F422050
  • 157.01
F422053 5.0mm150mm5mm1-1/4"
45mm
5200-8900
F422053
  • 157.01
O/S
F422060 6.0mm150mm6mm30mm
45mm
5200-8900
F422060
  • 165.94
F422063 6.0mm150mm6mm1-1/4"
45mm
5200-8900
F422063
  • 165.94

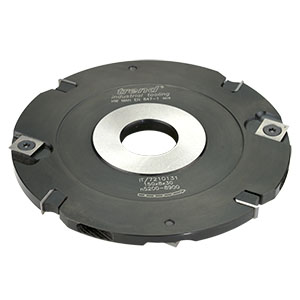

F422080 8.0mm150mm8mm30mm
45mm
5200-8900
F422080
  • 127.97
F422083 8.0mm150mm8mm1-1/4"
45mm
5200-8900
F422083
  • 127.97

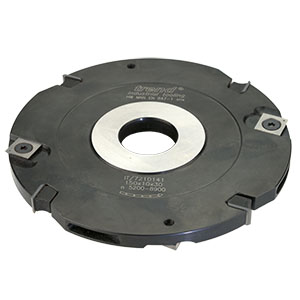

F422100 10.0mm150mm10mm30mm
45mm
5200-8900
F422100
  • 138.01
F422103 10.0mm150mm10mm1-1/4"
45mm
5200-8900
F422103
  • 138.01
F422120 12.0mm150mm12mm30mm
45mm
5200-8900
F422120
  • 145.81
O/S
F422123 12.0mm150mm12mm1-1/4"
45mm
5200-8900
F422123
  • 145.81
F423040 4.0mm180mm4mm30mm
55mm
4200-7200
F423040
  • 263.59
F423050 5.0mm180mm5mm30mm
55mm
4200-7200
F423050
  • 235.80
F423060 6.0mm180mm6mm30mm
55mm
4200-7200
F423060
  • 285.35
F423080 8.0mm180mm8mm30mm
55mm
4200-7200
F423080
  • 139.63
F423100 10.0mm180mm10mm30mm
55mm
4200-7200
F423100
  • 145.81
F423120 12.0mm180mm12mm30mm
55mm
4200-7200
F423120
  • 151.30
