Jointing Block 5.0mm

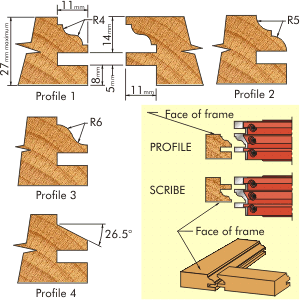

A two wing cutter block in hard wearing light metal alloy with easily replaceable TC profile inserts. The block will cut the profile and matching counter profile to produce joints for cabinet doors, panelling etc. in all solid timbers and man-made boards. The replaceable tips ensure consistent cutting performance with no sharpening necessary: simply replace the inserts when they become blunt. The block is supplied with a pair of profile knives fitted; additional knives may be purchased to change the profile. N.B. two knives are required which are priced singly. The block is suitable for jointing material from 22mm to 27mm in thickness, has a tongue and groove width of 5mm and a profile width of 12mm. A guide ring 98mm diameter is available to match this block - see Spindle Accessories section.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.


Spare parts should be selected from the table above and ordered from the Spares and TC knives section.
Go to Spare parts page X
Jointing Block 5.0mm
Jointing Block 5.0mm
Jointing Block 5.0mm
  • Jointing Block 5.0mm Thumbnail
  • Jointing Block 5.0mm Thumbnail
  • Jointing Block 5.0mm Thumbnail
Part
Number
Size
Profile Number
Maximum RPMPriceDetailsBuy
Dia.HeightBore
F263310 120mm40mm30mm
1
8400
F263310
  • 166.43
F263313 120mm40mm1-1/4"
1
8400
F263313
  • 145.20
F263320 120mm40mm30mm
2
8400
F263320
  • 166.43
F263323 120mm40mm1-1/4"
2
8400
F263323
  • 145.20
F263330 120mm40mm30mm
3
8400
F263330
  • 166.43
F263333 120mm40mm1-1/4"
3
8400
F263333
  • 145.20
F263340 120mm40mm30mm
4
8400
F263340
  • 166.43
F263343 120mm40mm1-1/4"
4
8400
F263343
  • 145.20
Replacement knives Replacement knives
F001201 Profile 1 knife (single) F001201
  • 39.00
F001202 Profile 2 knife (single) F001202
  • 39.00
F001203 Profile 3 knife (single) F001203
  • 39.00
F001204 Profile 4 knife (single) F001204
  • 39.00
