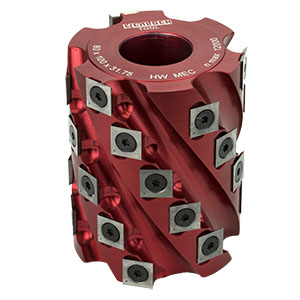

Spiral Planer

This cutterhead is manufactured from hard wearing light metal alloy and is suitable for planing and jointing in soft woods, hard woods and man-made board, including veneered and laminated material. May be used with a guide bearing or ring fence for planing and shaping curved work with a template. The 62mm diameter block is especially suitable for use on lighter machines. The staggered design of the carbide knives will leave slight witness lines on the workpiece.

Manufactured to EN847-1/2 - suitable for HAND FEEDING.

Spiral Planer
Spiral Planer
  • Spiral Planer Thumbnail
  • Spiral Planer Thumbnail
Part
Number
SizeKnivesMaximum RPMPriceDetailsBuy
DiaHeightBore
F258080 62mm80mm30mm1612000 F258080
  • £133.58
F258083 62mm80mm1-1/4"1612000 F258083
  • £133.58
F258100 80mm100mm30mm3012000 F258100
  • £237.91
F258103 80mm100mm1-1/4"3012000 F258103
  • £237.91
Replacement parts Replacement parts
F001014 TC knife 14x14x2 (single) F001014
  • £2.60
F002060 Clamp screw M5 x 8 (single) F002060
  • £0.55
F002100 Torx key T25 F002100
  • £3.84
