HSS Extra Long DIN 1869

Industrial quality HSS drills manufactured to DIN 1869 standard. These extra long series drills are suitable for deep drilling in many materials including metals, plastics, timber, etc.
Special care needs to be taken with these extra length drills to avoid breakage.
Please note: These drills are 118° V point and are not available in lip and spur configuration.

HSS Extra Long DIN 1869
HSS Extra Long DIN 1869
HSS Extra Long DIN 1869
HSS Extra Long DIN 1869
  • HSS Extra Long DIN 1869 Thumbnail
  • HSS Extra Long DIN 1869 Thumbnail
  • HSS Extra Long DIN 1869 Thumbnail
  • HSS Extra Long DIN 1869 Thumbnail
Part
Number

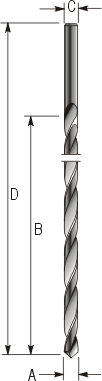

ABCDPriceDetailsBuy
DX020 2.00mm85mm2.00mm125mm DX020
  • 5.10
DX025 2.50mm95mm2.50mm140mm DX025
  • 5.20
DX030 3.00mm130mm3.00mm190mm DX030
  • 7.70
DX035 3.50mm180mm3.00mm265mm DX035
  • 11.70
DX040 4.00mm190mm4.00mm280mm DX040
  • 11.90
DX045 4.50mm200mm4.50mm295mm DX045
  • 14.20
DX050 5.00mm210mm5.00mm315mm DX050
  • 14.45
DX055 5.50mm225mm5.50mm330mm DX055
  • 16.55
DX060 6.00mm225mm6.00mm330mm DX060
  • 17.00
DX065 6.50mm235mm6.50mm350mm DX065
  • 16.75
DX070 7.00mm250mm7.0mm370mm DX070
  • 22.50
DX075 7.50mm250mm7.50mm370mm DX075
  • 28.50
DX080 8.00mm265mm8.00mm390mm DX080
  • 28.50
DX085 8.50mm265mm8.50mm390mm DX085
  • 33.13
DX090 9.00mm280mm9.00mm410mm DX090
  • 35.76
DX095 9.50mm280mm9.50mm410mm DX095
  • 41.09
DX100 10.0mm295mm10.0mm430mm DX100
  • 41.77
