Espagnolette Groover

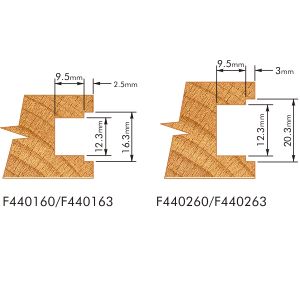

A heavy duty steel block with replaceable TC knives and scribes. A rebated groove is formed in one pass to enable the fitting of the espagnolette locking bar.
The espagnolette locking system offers many advantages over the traditional latch/lock systems on timber windows and doors.
The block is supplied fitted with a set of replaceable knives.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.


Spare parts or knives should be selected from the table above and ordered from the Spares and TC knives section.
Go to spare parts and knivesX
Espagnolette Groover
Espagnolette Groover
Espagnolette Groover
  • Espagnolette Groover Thumbnail
  • Espagnolette Groover Thumbnail
  • Espagnolette Groover Thumbnail
Part
Number
Size
Body Material
Maximum RPM
PriceDetailsBuy
Dia.HeightBore
F440160 180mm16.3mm30mm
Steel
7500
F440160
  • £203.30
F440163 180mm16.3mm1-1/4"
Steel
7500
F440163
  • £203.30
F440260 180mm20.3mm30mm
Steel
7500
F440260
  • £213.60
F440263 180mm20.3mm1-1/4"
Steel
7500
F440263
  • £213.60
